End Module Wiring Kit

Hobby Crafts N More
#010 001 5000 5001


This kit is for the wiring harness of an End module that follows the Z-Bend Standards. It has wiring for one end module wiring harness(Harness is male DB-25 to Female DB-25). It also has instructions to assemble the harness and all the wire is color coded to make it easy to follow.

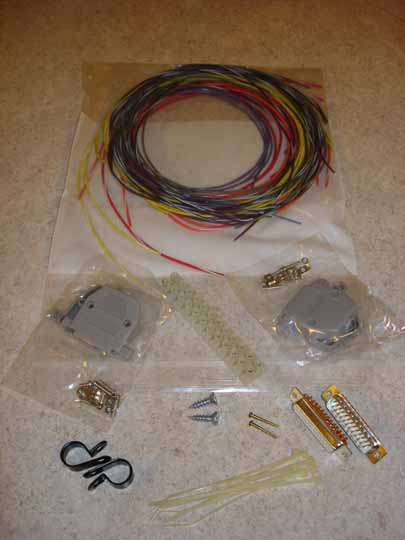

Kit Includes:
1 Male DB-25 connectors
1 Female DB-25 connectors
2 DB-25 Hoods
1 12 pin Terminal Blocks
2 pieces of 3 feet 18 gauge Red Wire
2 pieces of 3 feet 18 gauge Red w/ White Stripe Wire
2 pieces of 3 feet 18 gauge Orange Wire
2 pieces of 3 feet 18 gauge Orange w/ White Stripe Wire
2 pieces of 3 feet 18 gauge Yellow Wire
2 pieces of 3 feet 18 gauge Yellow w/ White Stripe Wire
2 pieces of 3 feet 22 gauge Brown Wire
2 pieces of 3 feet 22 gauge Brown w/ White Stripe Wire
2 pieces of 3 feet 22 gauge Gray Wire
2 pieces of 3 feet 22 gauge Gray w/ White Stripe Wire
2 pieces of 3 feet 22 gauge Purple Wire
2 pieces of 3 feet 22 gauge Purple w/ White Stripe Wire
2 Plastic Clamps
2 Flat Head Phillips 10 x ¾ Screws
2 Round Head Slotted 2 X ¾ Screws
12 Tie Wraps


These Wiring Kits are based on the Z-Bend Track Standards created by Bill Kronenberger and similar to the wiring kits he sold.
