End Module Wiring Semi Kit

Hobby Crafts N More
#010 001 5000 5002


This kit is for the wiring harness of an End module that follows the Z-Bend Standards. It has wiring for one end module wiring harness (Harness is male DB-25 to Female DB-25). It also has instructions to assemble the rest of the harness, all the wires are solder to the DB-25 and the hood is assembled. All the wire is color coded to make it easy to follow and soldering is done by professional firm.

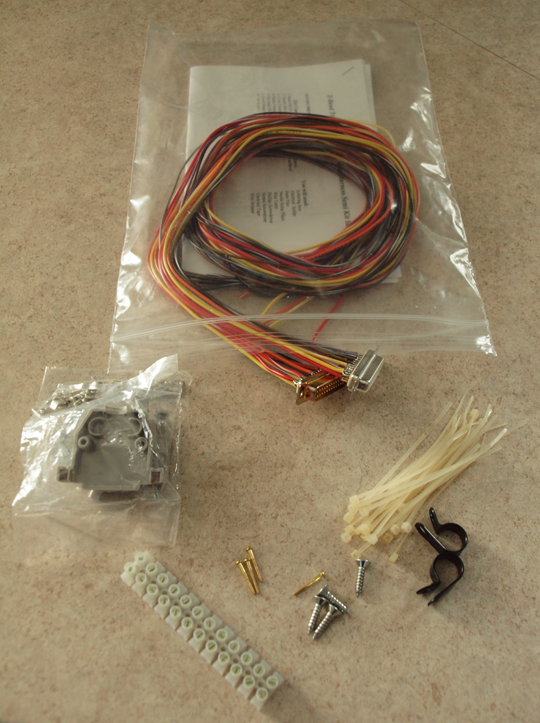

Kit Includes:
1 Male DB-25 connectors with wires soldered too
1 Female DB-25 connectors with wires soldered too
2 DB-25 Hoods
1 12 pin Terminal Blocks
2 Plastic Clamps
2 Flat Head Phillips 10 x ¾ Screws
2 Round Head Slotted 2 X ¾ Screws
12 Tie Wraps


These Wiring Kits are based on the Z-Bend Track Standards created by Bill Kronenberger and similar to the wiring kits he sold.


Z Scale
Z Gauge
1:220 Scale
