010 001 5000 5003

Main Module Wiring Kit

Hobby Crafts N More
#010 001 5000 5003


This kit is for the wiring harness of a through module that follows the Z-Bend Standards. It has wiring for one module and has enough wire to reach up to a 5 1/2 foot long module harness(Harness is male DB-25 to Female DB-25). It also has instructions to assemble the harness and all the wire is color coded to make it easy to follow.

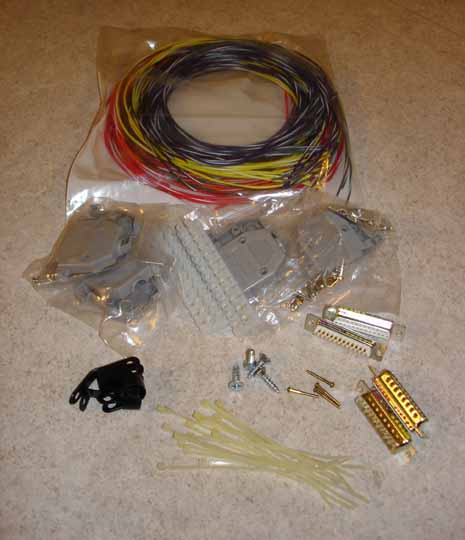

Kit Includes:
2 Male DB-25 connectors
2 Female DB-25 connectors
4 DB-25 Hoods
2 12 pin Terminal Blocks
4 pieces of 3 feet 18 gauge Red Wire
4 pieces of 3 feet 18 gauge Red w/ White Stripe Wire
4 pieces of 3 feet 18 gauge Orange Wire
4 pieces of 3 feet 18 gauge Orange w/ White Stripe Wire
4 pieces of 3 feet 18 gauge Yellow Wire
4 pieces of 3 feet 18 gauge Yellow w/ White Stripe Wire
4 pieces of 3 feet 22 gauge Brown Wire
4 pieces of 3 feet 22 gauge Brown w/ White Stripe Wire
4 pieces of 3 feet 22 gauge Gray Wire
4 pieces of 3 feet 22 gauge Gray w/ White Stripe Wire
4 pieces of 3 feet 22 gauge Purple Wire
4 pieces of 3 feet 22 gauge Purple w/ White Stripe Wire
4 Plastic Clamps
4 Flat Head Phillips 10 x ¾ Screws
4 Round Head Slotted 2 X ¾ Screws
24 Tie Wraps


These Wiring Kits are based on the Z-Bend Track Standards created by Bill Kronenberger and similar to the wiring kits he sold.


Z Scale
Z Gauge
1:220 Scale
